Benzindruckanzeige 0-15PSI für 10mm Schlauch
Benzindruckanzeige 0-15PSI für 10mm Schlauch

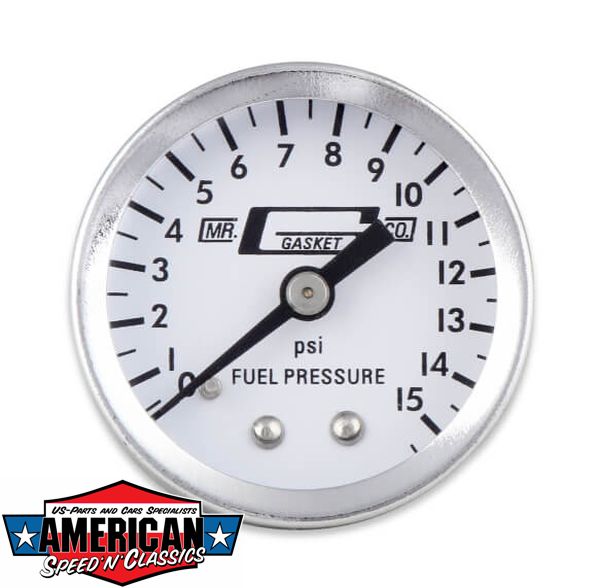

Benzindruckmanometer mechanisch
Anzeige: Weiß mit schwarzen Zahlen
Anzeigebereich: 0-15lbs
Durchmesser: 38mm
Anschlüsse: 2x 10mm Schlauchanschlüsse
Lieferung: Stückweise

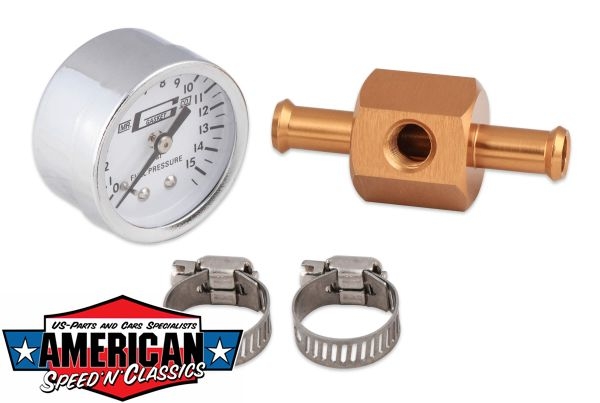

deal for in-line connection of fuel pressure almost anywhere. This gold anodized aluminum fuel block has 3/8" hose barb on inlet and outlet. It comes complete with a 1-1/2" diameter gauge with 1/2 lb increments and a range of 0-15 lbs.
Features:
- Pressure Gauge Reading From 0-15 Pounds

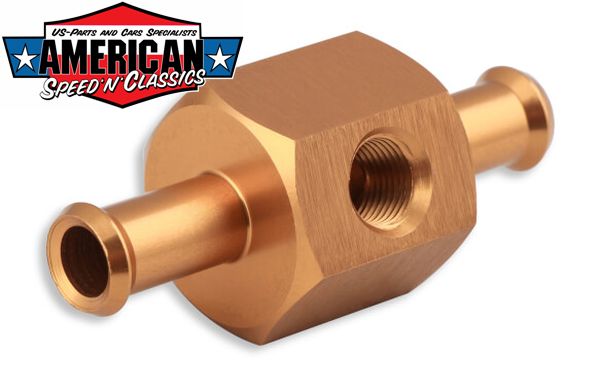

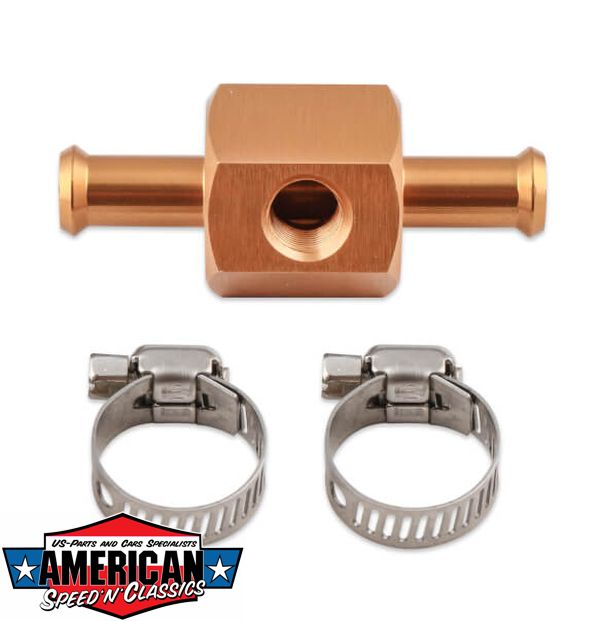

- Inline Fuel Block
- Gold Anodized
- Fits 3/8" Fuel Hose
- Clean and simple installation
| Adapter NPT Size ( A ) |
1/8 NPT MALE |
| Brand |
Mr. Gasket |
| Diameter |
1.5" |
| Emission Code |
5 |
| Face Color |
White |
| Finish |
Gold anodized |
| Function |
Analog |
| Gauge Range |
Up to 15 PSI |
| Gauge Type |
Fuel Pressure |
| Gauge Writing Color |
Black |
| Glycerin Filled |
No |
| Hose Barb |
3/8" |
| Liquid Filled |
No |
| Material |
Aluminum & Steel |
| Pressure Range |
0-15 PSI |
| Product Type |
Fuel Pressure Gauge |
| |
|
